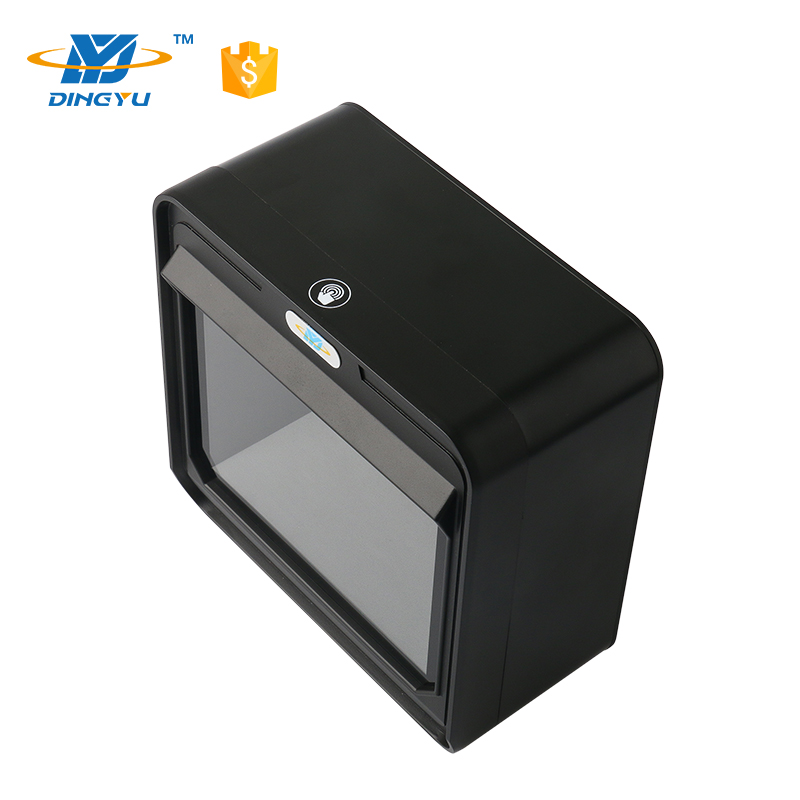

qr code With Memory big screen omnidirectional 2D CMOS Desktop barcode scanner
Description:
DP8310 is a professional 2D scanning platform. It can read various screen brightness of the phones 1D 2D barcodes.
Large window design, large viewing angle, support all kinds of screen size mobile phones.
Excellent performance provides users with very comfortable using experience.
Features:
☆ Mini size, widely used in wireless machine, self-service terminal.
☆ Read all mainstream 1D 2D barcodes in the market easily.
☆ High brightness, dark environment scanning, low power consumption.
☆ Interface: USB, RS232
☆ Press the button to change the mode for non-screen scanning.
Parameter:
| Scan Type | CMOS |
| Light Source | Red Light LED 625±10nm(aim), 5600K LEDs( Lighting) |
| CPU | 32-bit |
| Field of view | 60°(H)x48°(V) |
| Resolution | 640*480 |
| Resolution | ≥5mil/0.127mm(PCS90%,Code 39) |
| Decoding speed | 25CM/S |
| Depth of field | 10mm-300mm |
| Scan Mode | Auto Sense |
| Scan angle | Roll±360°, Pitch±45°, Skew±32°(PCS90%, Code 39, 10mil/0.25mm) |
| Print Contrast Signal | ≥25% |
| Ambient Light | Dark environment, indoor natural light |
| Symbologies | 1D:Code 39, Full ASCII Code 39, Code 128, Code 93,Code 11, Interleave 2 of 5, NEC 2of 5, Straight 2 of 5 Industrial, Straight 2 of 5 IATA,GS1-128,Telepen,UPC-A,UPC-E0,EAN/JAN-13, EAN/JAN-8,MSI,GS1 DataBar,Trioptic code,Codablock A F,TLC39,etc. 2D: PDF417,QR CODE,MICRO QR,DATAMATRIX, AZTEC CODE,HanXin,Maxicode,Micro PDF417,etc. |
| Weight | ≈850g (no Cable) |
| Dimension | 150.49mm L *77.28mm W * 136.00mm H |
| Interface Type | USB |
| Communication Mode | USB,RS232 |
| Power Supply | DC 5V@470mA(work) |
| Cable length | 1.5m |
| Humidity | 5% to 95%(non-condensing) |
| Drop Height | 1.2m |
| Temp. Test | 30 minutes for high Temp., 30 minutes for low Temp., |
| High Temp. | 60℃ |
| Low Temp. | -20℃ |
| Transport vibration Test | 10H@125RPM |
FAQ:
Q:Can i make a trial or sample order before ordering?
A: Yes,sure
Q: How can i print my logo on printer? how much ?
A: Firstly,pls inform us your logo and printing position expected,then we will make sample for your confirmation shortly The cost depends on some factors.
Q:Can we have our logo or company name to be printed on the product or package?
A:Yes, printer with logo or company name is acceptable, it will be accomplished by silk printing, please contact us for more details.
Q: How about your warranty?
A: The buyer will enjoy 2 year warranty since buying from us.
Q: If the scanner not working ,how can we do ?
A: pls contact and inform related sales representative with the issues you have.
