32 Bit CPU Omni Automatic Barcode Scanner For Store 4 Mil /0.1mm Resolution DP8500

Name: 32 Bit CPU Omni Automatic Barcode Scanner For Store 4 Mil 01mm Resolution DP8500
Brand: Dingyu/ DY SCAN
Price: 1 USD

32 Bit CPU Omni Automatic Barcode Scanner For Store 4 Mil /0.1mm Resolution DP8500 Manufactures

Brand Name : Dingyu/ DY SCAN

Model Number : DP8500

Certification : CE, ROHS, FCC, IEC, FDA

Place of Origin : China

MOQ : 1

Price : Negotiate

Payment Terms : T/T, Paypal, Alibaba

Supply Ability : 10000pcs/month

Delivery Time : 3-7 days

Packaging Details : L75mm * W80mm * H140mm

CPU : 32bit

Color : White

Dimension : 92.33mm L *84.74mm W * 124.61mm H

Humidity : 5% to 95%（non-condensing）

Resolution : 5mil/0.127mm

Scan type : CMOS

Contact Now

Desktop Omni Barcode Scanner with USB/RS232/PS2 Interface

32 Bit CPU Omni Automatic Barcode Scanner For Store 4 Mil /0.1mm Resolution DP8500

Product Description

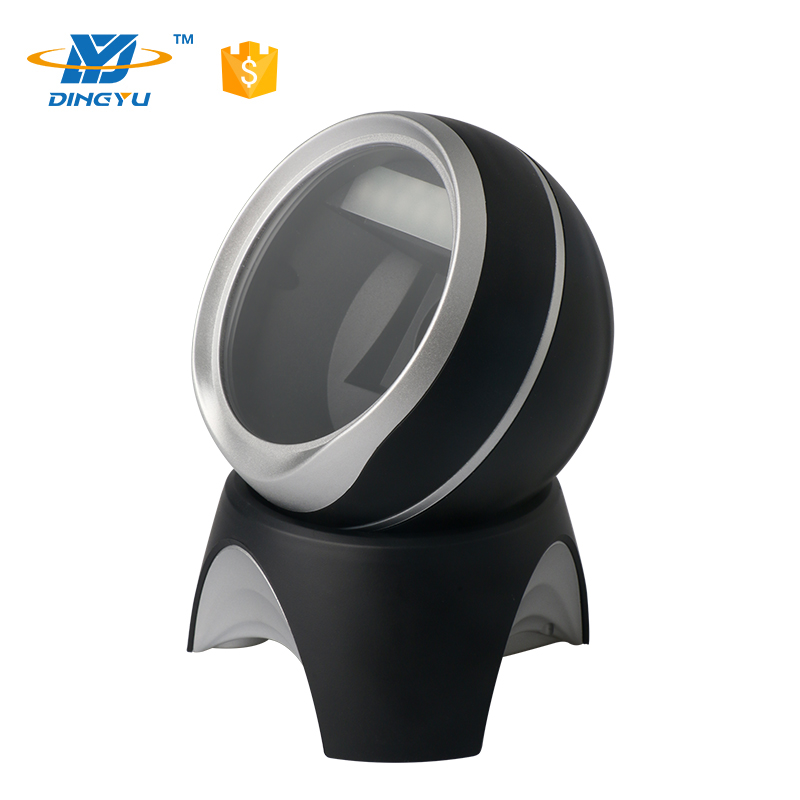

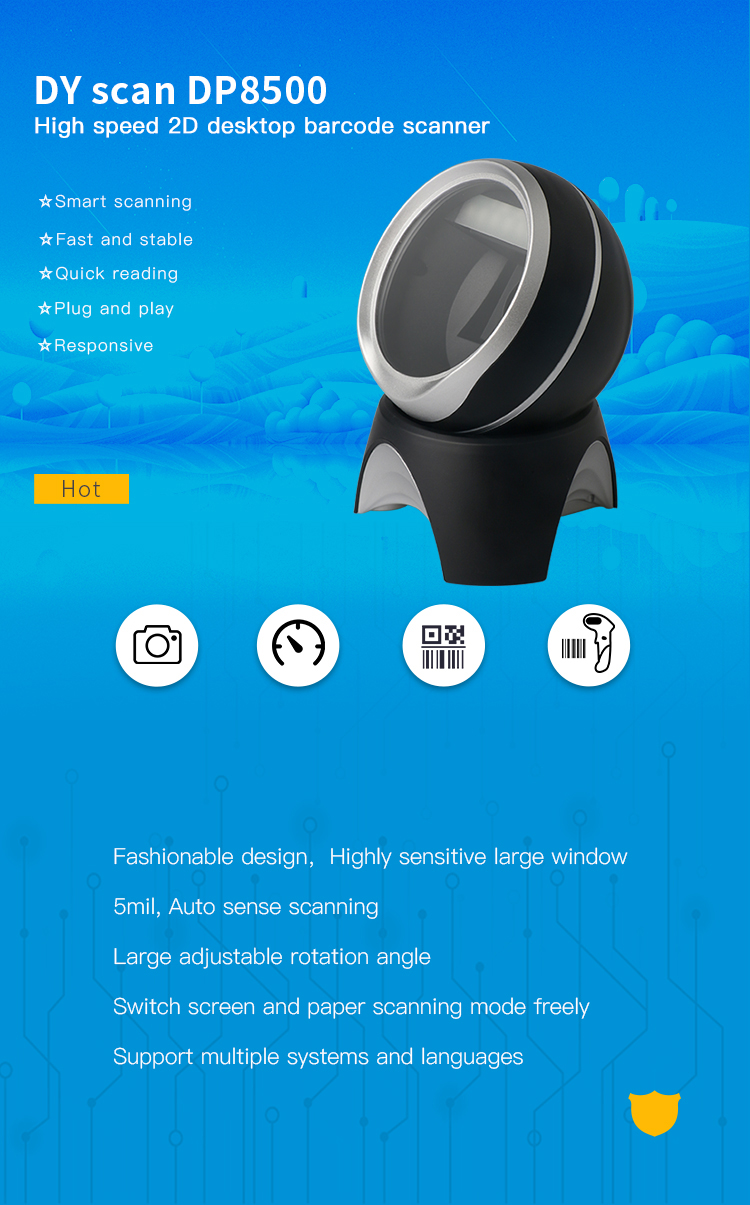

DP8500 is a high performance platform with leading CMOS image recognition technology and intelligent image recognition system.

It can scan universal 1D 2D codes, read the paper, goods, screens, other media barcodes.

Compact design, beautiful appearance with efficient reading performance, provide users with excellent experience.

32 Bit CPU Omni Automatic Barcode Scanner For Store 4 Mil /0.1mm Resolution DP8500

Application

▅ Mobile payment ▅ Supermarket

▅ Courier

32 Bit CPU Omni Automatic Barcode Scanner For Store 4 Mil /0.1mm Resolution DP8500

Parameter

Physical Parameter
Weight	190g ( Without cable)
Dimension	92.33mm L 84.74mm W 124.61mm H
Interface type	USB, RS232
Communication way	TTL-232 , USB (HID-KBW,USB-COM)
Power supply	DC 5V@470mA(work)
Performance
Scan type	CMOS
Light source	Aiming: 617 nm LED ; illumination:6500K LED
CPU	32-bit
Optical Resolution	640*480
Resolution	≥5mil/0.127mm(PCS90%,Code 39)
Scan speed	10cm/s
Depth of field	0-350mm
Scan mode	Auto sense
Scan angle	Roll360°, Pitch±45°, Skew±32°
Print contrast signal	≥25%
Ambient light	Dark, Indoor natural light
Symbologies	1D: Code 39, Full ASCII Code 39, Code 128, Code 93,Code 11, Interleave 2 of 5, NEC 2of 5, Straight 2 of 5 Industrial,Straight2of5 ,IATA,GS1-128,Telepen,UPC-A,UPC-E0,EAN/JAN-13, EAN/JAN-8,MSI,GS1 DataBar,Trioptic code,Codablock A F,TLC39,etc. 2D: PDF417,QR CODE,MICRO QR,DATAMATRIX, AZTEC CODE,HanXin,Maxicode,Micro PDF417,etc.
Environmental
Operating temperature	-20℃ to 50℃
Storage temperature	-40℃ to 70℃
Humidity	5% to 95%(non-condensing)
Drop Height	1.2m
Transport vibration Test	10H@125RPM
Accessories List
Data cable	USB cable, used to connect the DP8500 and the information receiving host.
	RS232 cable, used to connect the DP8500 and the information receiving host, with USB supply cable.

Packing & Delivery

Package Size :150*230*95

Size: 92.33mm L *84.74mm W * 124.61mm H

Weight:≈190g(without cable)

Our Services

1. Your inquiry related to our products or price will be replied in 24 hours.

2. Experienced staff to answer all your inquiries in English.

3. Protection of your sales area, ideas of design and all your private information.

4. Engineers can help you to solve any technical problems.

5. 1 year warranty.
