Fast Scanning 2D Barcode Scanner Module with 40-530mm Depth of Field and 35cm/S Scan Speed

MOQ : 1

Price : 10

Model NO. : DE2290H

Interface Type : USB

Scan Speed : 35cm/S

Scan Element : CMOS

Resolution Ratio : 3mil/0.076mm

Resolution : 300,000 Pixel, 640*480

Scan Mode : Manual, Continuous, Auto Sense, Command Control

Print Contrast : 20%

Power Supply : DC 3.3V, 200mA Work

FFC Cable : 5cm

Drop Height : 1.2m

Weight : 3.5g

Depth of Field : 40-530mm

Dimensions : 21.3mm L *15.50mm W * 11.50mm H

Operating Temperature : -20ºC to 50ºC

Contact Now

OEM Small High Sensitive Engine 1D 2D CMOS USB TTL Barcode Scanner Module

Fast Scanning 2D Barcode Scanner Module with 40-530mm Depth of Field and 35cm/S Scan Speed

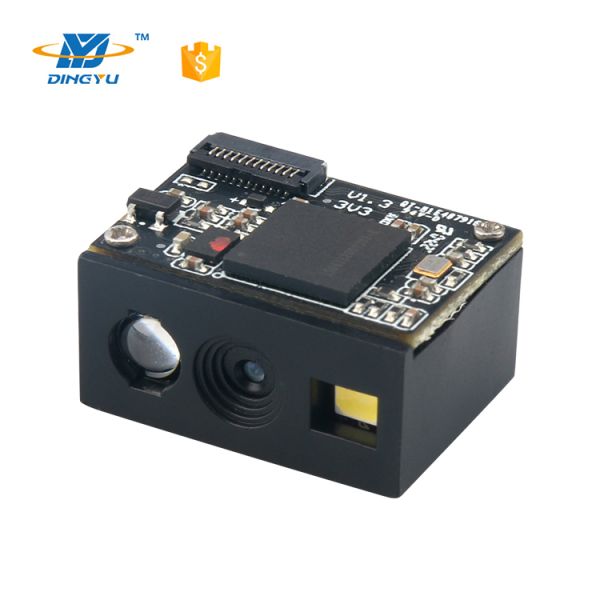

DE2290H is a high-performance 300,000 global pixel embedded 2D image module with advanced CMOS image recognition technology, intelligent image recognition system.

With excellent reading performance, you can easily read barcodes on media such as paper, merchandise, and screen.

The integrated compact design allows for easy insertion into a wide range of equipment.

Widely used in various types of self-service machines, price checking machines, lockers,etc.

Communication	USB(USB-KBW,USB-COM,HID-POS),TTL
Scan Type	CMOS,Global shutter
Resolution	300,000 pixel, 640*480
Reading precision	≥3mil/0.076mm(PCS90%,CODE 39)
Depth of field	40mm~530mm(Different barcode range)
Decoding speed	35CM/S
Scan Mode	Manual , Continuous, Auto Sense, Command control
Prompt method	LED indicator light, buzzer (external circuit)
Field of view	41° * 31°
Scan angle	Test Conditions:CODE39,10mil/0.25mm,PCS90%
	Roll: ±360°,Pitch:±60°,Skew: ±55°
Print Contrast Signal	≥20%
Ambient Light	Dark environment, indoor natural light
Symbologies	1D:UPC-A,UPC-E,EAN-8,EAN-13,Code 128, GS1-128, Code 39,Code 32, Code 93,Code 11,Interleaved 2 of 5,Matrix 2 of 5,Industrial 2 of 5(Straight 2 of 5),Standard 2 of 5(IATA 2 of 5),Codabar(NW-7),MSI,GS1 Databar(Omnidirectional, Limited, Expanded),China Post, Tepepen, Febraban,GS1 Composite etc. 2D: QR Code, Micro QR Code, Data Matrix,PDF417, Micro PDF 417, MaxiCode, Aztec,HanXin Code, etc.

Weight	Around3.5g
Dimension	21.3mm L 15.50mm W 11.50mm H
FPC cable length	5CM (FPC single-sided cable)
Interface Type	FPC 12PIN Pitch 0.5
Power Supply	DC 3.3V
Current	200mA(Average Work), 95mA(Standby),38mA(Sleep)

Operating	-20ºC to 50ºC
Storage	-40ºC to 60ºC
Humidity	5% to 95%(No condensation)
Transport	10H@125RPM
