OEM 2D QR Code Scanner Embedded Apparat Kiosk Barcode Scanner Module

Shenzhen DYscan Technology Co., Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

OEM 2D QR Code Scanner Embedded Apparat Kiosk Barcode Scanner Module

Brand Name : DY SCAN

Model Number : DP8618

Certification : CE, ROHS, FCC, IEC

Place of Origin : China

MOQ : 1

Price : Negotiate

Payment Terms : T/T, Paypal, Alibaba

Supply Ability : 100,000pcs/month

Delivery Time : 3-7 days

Packaging Details : Paper box

Product dimension : 69mm L* 69mm W * 31mm H

Communication way : USB, RS232

Resolution : ≥4mil/0.1mm(PCS90%,CODE 39)

Scan tolerance : 60CM/S

Color : White

Scan angle : Roll:±360°, Pitch:±60°, Yaw:±55°

Scan view : Horizontal 60°, vertical 50°, diagonal 72°

Scan mode : Auto scan. continuous

Cable : 1.5m

Contact Now


OEM 2d Qr Barcode Reader Embedded Apparaat Kiosk Scanner Module



Product introduction

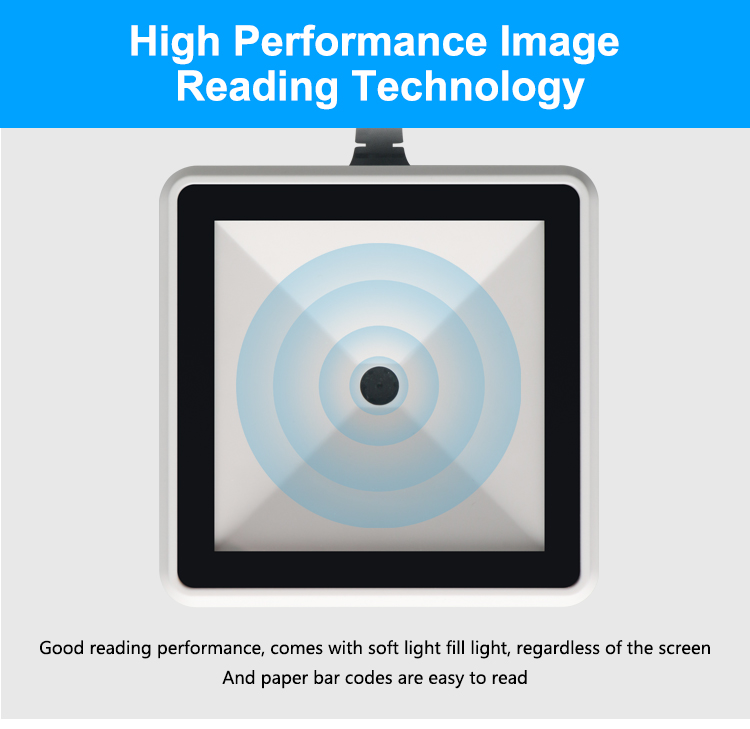

DP8618 is a 2D cost-effective desktop scanner with advanced CMOS image recognition technology.
It can easily read paper, goods, screen and other media 1D 2D barcodes.
Widely used in kiosk, turnstiles, vending machines, ticket checking machines.



Product data sheet

Scan Type CMOS
Image sensor 640*480
Resolution ≥4mil/0.1mm(PCS90%,CODE 39)
Decoding speed 60cm/s
View Horizontal 60°, vertical 50°, diagonal 72°
Depth of field 10-250mm
Scan Mode Auto sense, Command trigger
Scan angle Roll:±360°, Pitch:±60°, Yaw:±55°
Print Contrast Signal ≥20%
Ambient Light Dark environment, indoor natural light

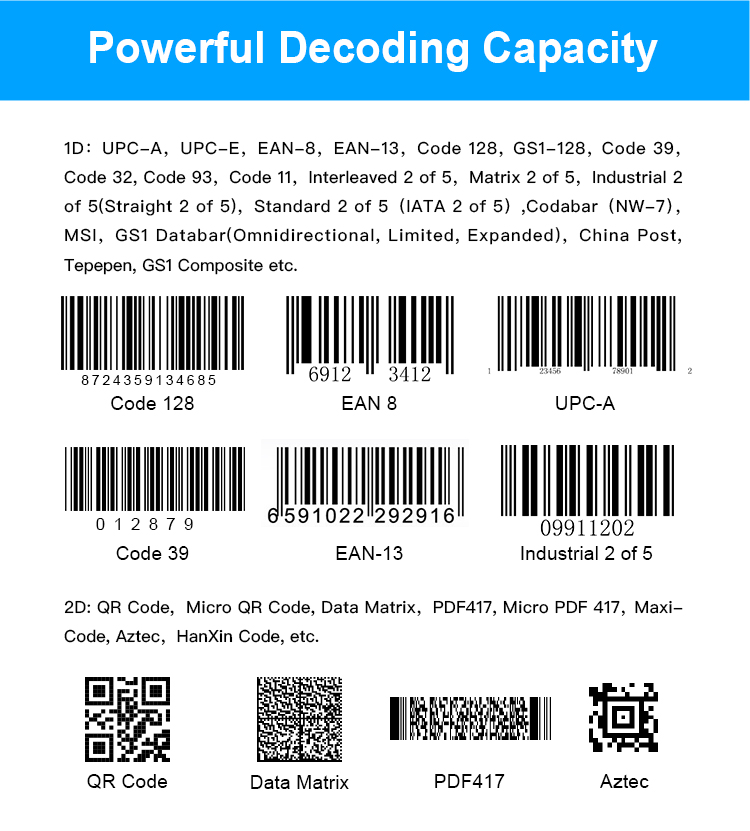

Symbologies

1D:UPC-A,UPC-E,EAN-8,EAN-13,Code 128, GS1-128, Code 39,Code 32, Code 93,Code 11,Interleaved 2 of 5,Matrix 2 of 5,Industrial 2 of 5(Straight 2 of 5),Standard 2 of 5(IATA 2 of 5),Codabar(NW-7),MSI,GS1 Databar(Omnidirectional, Limited, Expanded),China Post, Tepepen, GS1 Composite etc.
2D: QR Code, Micro QR Code, Data Matrix,PDF417, Micro PDF 417, MaxiCode, Aztec,HanXin Code, etc.

Weight ≈101g
Dimension 69mm L* 69mm W * 31mm H
Communication way USB(USB-KBW,USB-COM),RS232
Power Supply DC5V@240mA(work)

Operating temperature -20℃ to 50℃
Storage temperature -40℃ to 60℃
Humidity 5% to 95%(non-condensing)
Transport 10H@125RPM

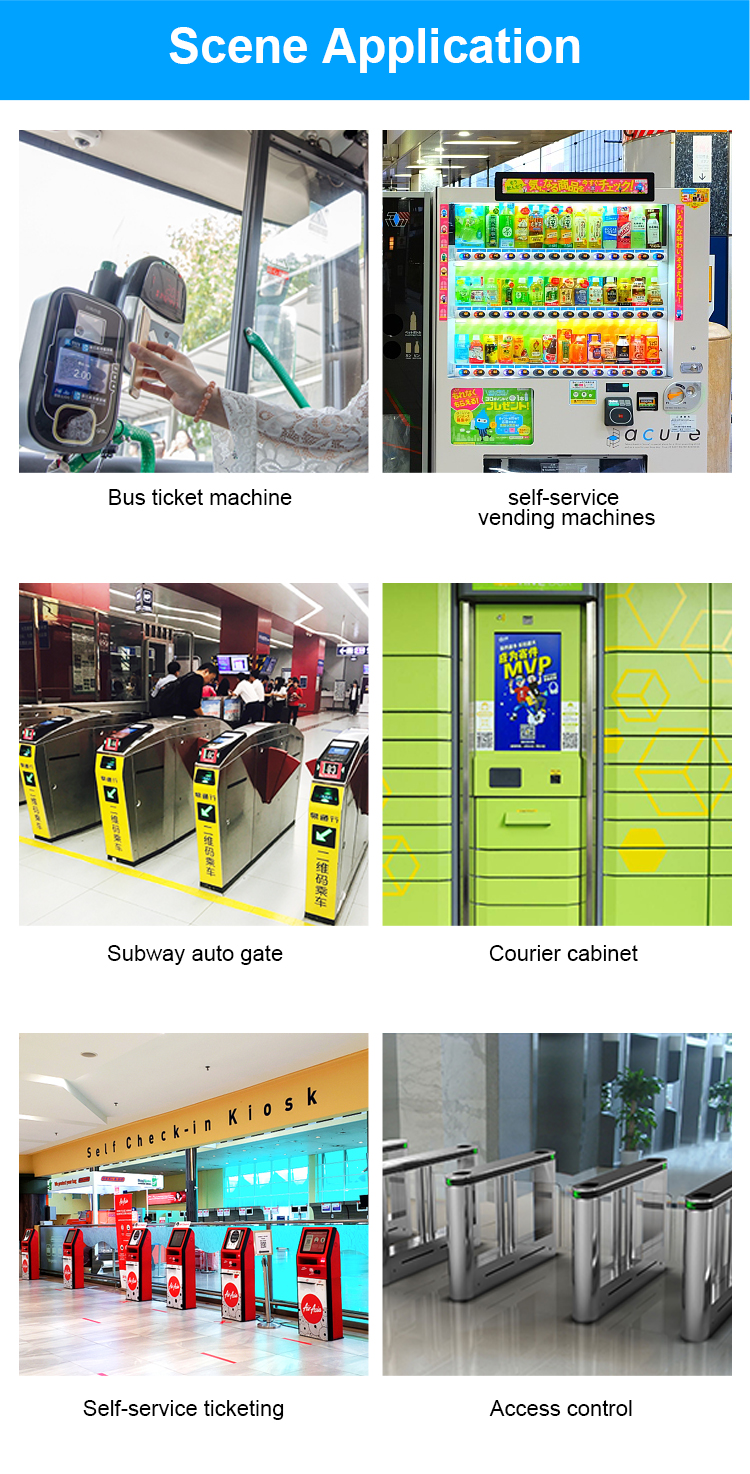

Application

* Queue numbering machine
* Self-service machine
* Ticket checking machine
* Bus validator
* Subway gate
* Access control
* Turnstile
* Kiosk

OEM 2D QR Code Scanner Embedded Apparat Kiosk Barcode Scanner Module

OEM 2D QR Code Scanner Embedded Apparat Kiosk Barcode Scanner Module

OEM 2D QR Code Scanner Embedded Apparat Kiosk Barcode Scanner Module

OEM 2D QR Code Scanner Embedded Apparat Kiosk Barcode Scanner Module

OEM 2D QR Code Scanner Embedded Apparat Kiosk Barcode Scanner Module

RFQ:

Q1. What’s your main products ?
- Laser Barcode Scanner
- Image CCD CMOS Barcode Scanner
- Barcode module
- Portable barcode scanner
- Handheld barcode scanner
- Desktop/flatbed barcode reader
- Ring type barcode reader
Q2. Are you a manufacturer?
Yes, our factory is located in Dongguan .
Q3. Do you have stock products to sell?
Yes, and we also work on OEM /ODM orders, customized your brand & label as your requiment;
Q4. What's the time of delivery ?
It's subject to your order quantity and our production schedule . Usually , 3-5 working days for sample, 12-15 working days for mass production after receipt of payments .
Q5. What information should I let you know if I want to get a quotation?
- The type you need, if possible, the specific product name
- Color & Interface
- Quantity of order
- Market of country
If possible, let us know if you have any experience on barcode scanners business
Q6. Can I get a sample? And how can I get it? How many days will samples be finished?
Yes, samples can be provided , but to be paid by customers. Sample fee will be credit in formal order. Most of samples are in stock, it takes 3-6 days by express delivery.
Q7. Do you inspect the finished products?
Yes, each step of production and finished products will be carried out inspection by QC department before shipping.
Q8. What advantage do you have?
1. Full rang of barcode scanner products & Independent research and development department,Supply OEM.
2. We are a manufacturer, and it ensures we have the ability to carry out the production schedule for punctual delivery.
3. Strict QC. For each order, strict inspection will be carried out by the QC department before shipping,
4. Certificates: Kinds of Invention Patents & CE&FCC& ROSH&ISO900:2008 and so on;
