USB Cable Handheld Barcode Scanner 2D Wired 640x480 Resolution Anti Drop

Name: USB Cable Handheld Barcode Scanner 2D Wired 640x480 Resolution Anti Drop
Brand: DYscan
Price: 1 USD

USB Cable Handheld Barcode Scanner 2D Wired 640x480 Resolution Anti Drop Manufactures

Brand Name : DYscan

Model Number : DS5220BL-2D

Certification : CE ROHS FCC IEC

Place of Origin : China

MOQ : 1pcs

Price : negotiable

Payment Terms : T/T, Western Union,PAYPAL

Supply Ability : 100000pcs/month

Delivery Time : 5-7days

Packaging Details : 56*41*43cm/10pcs /Carton

Scan Type : CMOS

Decoding speed : 35CM/S

Depth of field : 3mil：50~130mm，13mil：50~270mm

Scan Mode : Manual , Auto Sense

Print Contrast Signal : ≥20%

Battery capacity : 4800mAh

Symbologies : 1D /2D/QR CODE

Dimension : 60*115*170mm Scanner

Contact Now

USB Cable Wired Handheld Barcode Scanner 2D 640*480 Resolution

Feature

> Highly integrated two-dimensional decoding structure, anti-drop, anti-vibration.
> Using high-performance MCU, it can easily identify all mainstream 1D 2D barcodes in the market.
> 300,000 global exposure camera, automatic exposure, suitable for complex use environment.
> Easily read barcodes above 3MIL to meet daily scanning needs.
> Enhanced wireless 2.4G transmission technology, reliable outdoor transmission distance can reach more than 60 m, and support wired transmission without switching.
>Support wireless Bluetooth 4.2 communication mode, support HID, SPP, BLE three communication protocols.
>Support multiple working modes (manual, induction, continuous) to meet different reading needs.
>1.77 inch TFT screen, 128×160, can display up to 96 barcode characters in 6 lines.
>The product name and price information can also be displayed on the TFT screen through the uploaded product information.
>Support online upgrade, custom development and secondary development.
>With vibration prompt, scanning code is clearer.

Performance

Scan Type	CMOS
Light Source	Red Light LED 525±10nm(aim), 5600K LED ( Lighting)
CPU	32-bit
Resolution	640*480
Start time	4s
Resolution	≥3mil/0.076mm(PCS90%,CODE 39)
Decoding speed	65CM/S
Depth of field	10mm~550mm
Scan Mode	Manual , Auto Sense,Continuous
Scan angle	Roll:±360°,Pitch:±60°or greater,Yaw:±70°or greater)
Print Contrast Signal	≥15%
Ambient Light	Dark environment, indoor natural light
Wireless communication mode	Synchronization , storage
Wireless transmission distance	2.4GHz,150meters(Open distance), Bluetooth 30m ( Open distance)
Storage	4Mb(over 15,000 Product code)
Battery capacity	4800mAh
Battery charging time	About 6.5 hours
Continuous working time	≥36hours
Symbologies	1D:UPC-A,UPC-E,EAN-8,EAN-13,Code 128, GS1-128, Code 39,Code 32, Code 93,Code 11,Interleaved 2 of 5,Matrix 2 of 5,Industrial 2 of 5(Straight 2 of 5),Standard 2 of 5(IATA 2 of 5),Codabar(NW-7),MSI,GS1 Databar(Omnidirectional, Limited, Expanded),China Post, Tepepen, Febraban,GS1 Composite etc. 2D: QR Code, Micro QR Code, Data Matrix,PDF417, Micro PDF 417, MaxiCode, Aztec,HanXin Code, etc.

Physical Parameter

Weight	≈217.1g(without cable)
Dimension	L169.08mm * W67.1mm * H90.96mm
Communication Mode	USB, Wireless 2.4G, Bluetooth 4.2
Interface Type	B type USB, 1.8m cable
Power Supply	DC 5V input, decoding current:200mA

TFT screen parameters

Size	1.77 inch (up to 6 lines of 96 barcode characters can be displayed)
Resolution	128×160
Display content	Barcode data information currently read, current time, wireless (wired) status, wireless working mode, charging status and battery power, total number of stored data, total decoding times (maximum count display 99999)
Display direction	12 o'clock

Environmental

Operating temperature	-20℃ to 55℃
Storage temperature	-20℃ to 60℃
Humidity	5% to 95%(non-condensing)
Drop Height	1.5m
Temp. Test	30 minutes for high Temp., 30 minutes for low Temp.,
High Temp.	60℃
Low Temp.	-20℃
Transport Vibration Test	10H@125RPM

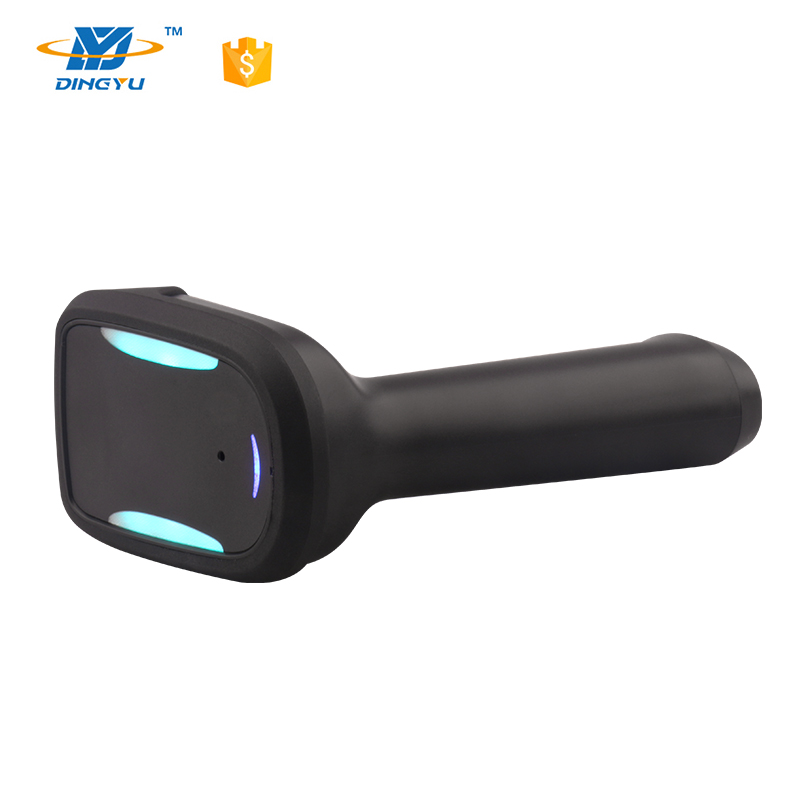

Detail Image

USB Cable Handheld Barcode Scanner 2D Wired 640x480 Resolution Anti Drop
