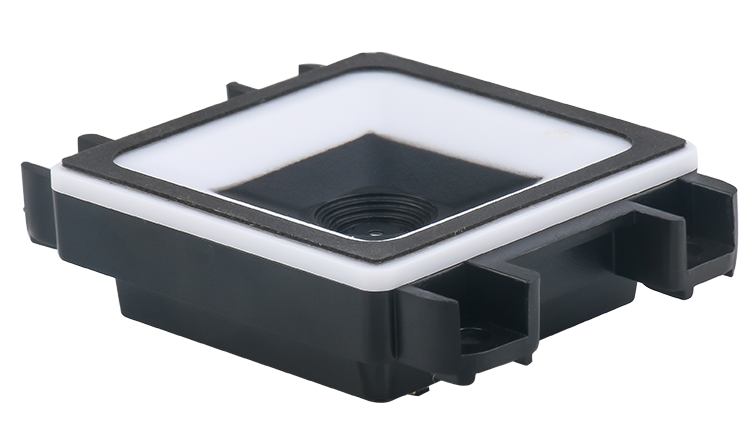

Handheld Barcode Scanner Small Omnidirectional QR Code Reader Module
Features
> Mini size, wide-angle design, suitable for all kinds of mobile phone code scanning.
> Good reading performance with soft light fill light. > Support online upgrade, customized development and secondary development.
| Scan Type | CMOS |
| Image sensor | 640*480 |
| Resolution | ≥4mil/0.1mm(PCS90%,CODE 39) |
| Decoding speed | 60cm/s |
| View | Horizontal 60°, vertical 50°, diagonal 72° |
| Depth of field | 10-150mm |
| Scan Mode | Auto sense, Command trigger, Continuous |
| Scan angle | Roll:±360°, Pitch:±60°, Yaw:±55° |
| Print Contrast Signal | ≥20% |
| Ambient Light | Dark environment, indoor natural light |
| Symbologies | 1D:UPC-A,UPC-E,EAN-8,EAN-13,Code 128, GS1-128, Code 39,Code 32, Code 93,Code 11,Interleaved 2 of 5,Matrix 2 of 5,Industrial 2 of 5(Straight 2 of 5),Standard 2 of 5(IATA 2 of 5),Codabar(NW-7),MSI,GS1 Databar(Omnidirectional, Limited, Expanded),China Post, Tepepen,GS1 Composite etc. 2D: QR Code, Micro QR Code, Data Matrix,PDF417, Micro PDF 417, MaxiCode, Aztec,HanXin Code, etc. |
| Weight | ≈27g |
| Dimension | 50mm L* 40.2mm W * 17.3mm H |
| Communication way | USB(USB-KBW,USB-COM),TTL |
| Interface type | 12PIN Pitch 0.5 FFC cable |
| Power Supply | DC 5V@240mA(work) |
Feature of Handheld QR Code scanner
1. The best shape design, soft rubber cover, shock-proof and shock-proof, more comfortable to operate.
2. Multiple decoding capabilities to quickly scan 1D/2D codes, QR codes and PDF417.
3. Large-capacity battery; the service life of the keys is up to 8 million times.
4. Multi-interface, support USB, RS232 interface, 2.4G receiver.
5. Super decoding ability, decoding rate: 200 times per second
6. Long-distance transmission, support wired and wireless transmission.
7. The keys are comfortable, and the service life of the keys is up to 5 million times
8. Factory direct sales, cheap price, stable scanning
9. No need to drive, easy to use, plug and play
Q1: How do you make sure the high quality barcode scanner?
DYscan: we are pofessional manufacturer and developer of barcode scanner, with rich field experience for 18 years.
Professional QC team and testing machine (Engine age test,wire bend machine,switch life test,shock resistance test).
All our barcode scanners pass CE,FCC,ROSH certifications etc.
Q2: How do you make quality control?
DYscan: we have wire bend test 1 million times, buttons are tested 1 million times, all the devices will be tested before send out.
Q3: How long is the warranty time of barcode scanner?
DYscan: 12 months
Q4: How to control the performance stable?
DYscan: We take the flow line production in the whole processing. Every product will be tested 4 times at least before delivery.
Q5: Can you provide OEM or ODM service for barcode scanner?
DYscan: We can do OEM, such as printing your own logo, color box, user manual. And we have our own technical team to support ODM service.
