Embedded Fixed Mount Scanner Wired Kiosk Cash Register QR Code Mini Size DF4100S

Name: Embedded Fixed Mount Scanner Wired Kiosk Cash Register QR Code Mini Size DF4100S
Brand: Dingyu/ DY SCAN
Price: 1 USD

Embedded Fixed Mount Scanner Wired Kiosk Cash Register QR Code Mini Size DF4100S Manufactures

Brand Name : Dingyu/ DY SCAN

Model Number : DF4100S

Certification : CE, ROHS, FCC, IEC, FDA

Place of Origin : China

MOQ : 1

Price : Negotiate

Payment Terms : T/T, Paypal, Alibaba

Supply Ability : 10000pcs/month

Delivery Time : 3-7 days

Packaging Details : 188mm L * 95mm W * 40mm H

Scan type : CMOS

Color : black

Interface Type : USB,DB9

Communication way : USB(USB-KBW,USB-COM),RS232

CPU : 32-bit

Resolution : 640*480

Scan Tolerance : 25CM/S

Depth of field : 10mm-200mm

Scan Mode : Auto sense

Print Contrast Signal : ≥25%

Contact Now

Embedded Fixed Mount Scanner Wired Kiosk Cash Register QR Code Mini Size DF4100

Product Description

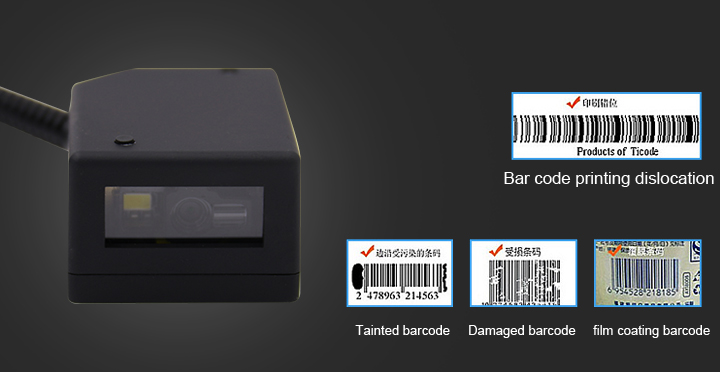

DF4100 is a high performance fixed mount scanner with leading CMOS image recognition technology and intelligent image recognition system.

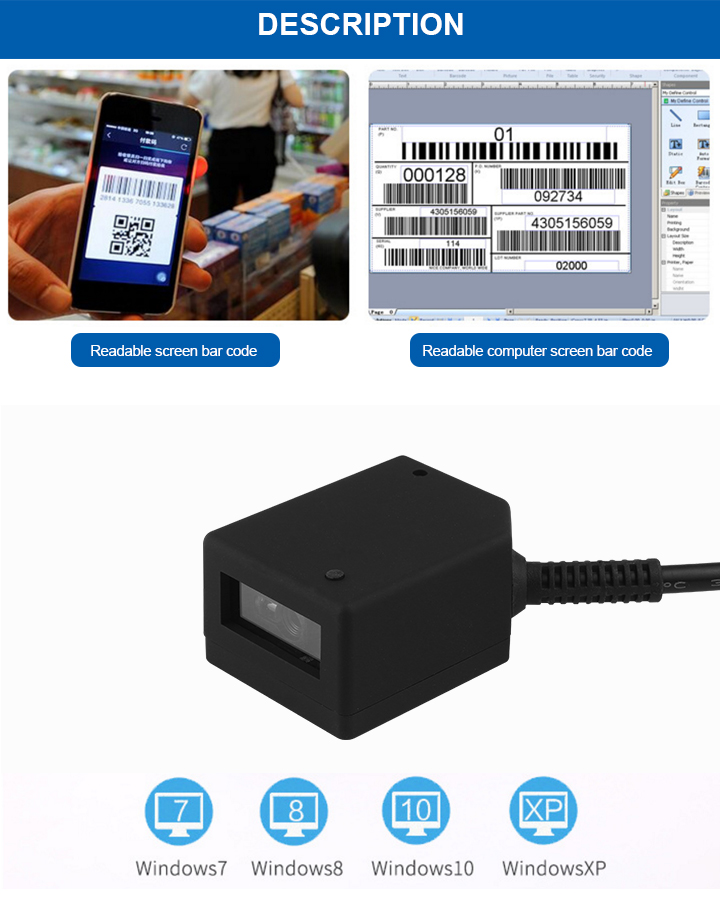

It can scan universal 2D codes, read the paper, goods, screens, other media barcodes. Compact design, can be easily embedded in all kinds of equipment. Widely used in various self-service machines, industrial lines, etc.

Embedded Fixed Mount Scanner Wired Kiosk Cash Register QR Code Mini Size DF4100S

Features
Simple structure, widely used in self-service selling machines.
Read all mainstream 1D 2D barcodes in the market easily.
High-performance processor, fast decoding. (4mil)
Support dark environment scanning.
Interface: USB, RS232
Support USB barcode information transmission. ( languages customization)

Embedded Fixed Mount Scanner Wired Kiosk Cash Register QR Code Mini Size DF4100S

Parameter

Physical Parameter
Weight	80g(USB)

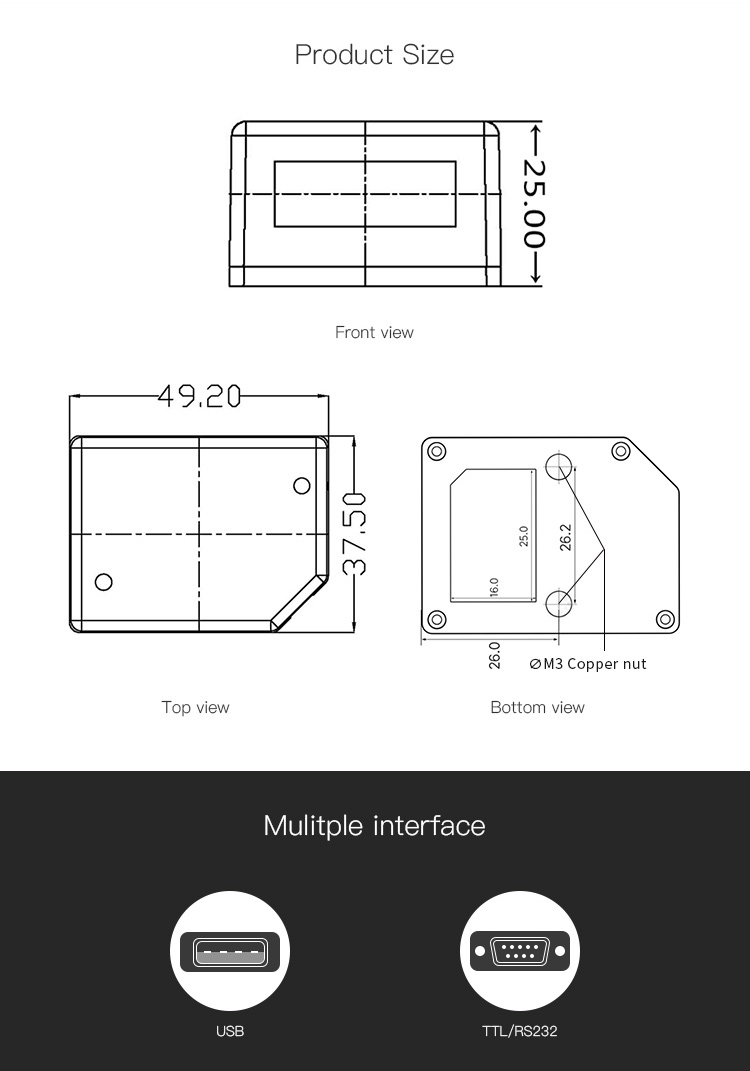

Dimension	(L)49.2mm * (W)37.5mm * (H)25.0mm
Communication Mode	USB(USB-KBW,USB-COM),RS232
Power Supply	DC 5V@100mA(work)
Performance
Scan Type	CMOS
Light Source	Red light LED 625±10nm(aiming),6500K LEDs(lighting)
CPU	32-bit
Optical Resolution	640*480
Resolution	39)≥5mil/0.127mm(PCS90%,Code 39)
Scan Tolerance	25CM/S
Depth of field	10mm-200mm
Scan Mode	Auto sense

Scan Angle	Roll360°,Pitch±60°,Skew±60°(PCS90%,Code 39,10mil/0.25mm)
Print Contrast Signal	≥20%
Ambient Light	Dark environment, indoor natural light
Symbologies	≥5mil/0.127mm(PCS90%,Code 39)
Environmental	1D: UPC-A,UPC-E,EAN-8,EAN-13,ISSN,ISBN,Code 128, GS1-128,ISBT 128, Code 39,Code 93,Code 32, Code 11, Interleaved 2 of 5,Matrix 2 of 5,Industrial 2 of 5,Standard 2 of 5(IATA),Codabar(NW-7),Plessey,MSI Plessey,GS1-Databar(RSS),Itf-14,etc. 2D: QR Code, Data Matrix, PDF 417, Aztec Code, Maxicode, Hanxin. etc.
Operating temperature	-20℃ to 50℃
Storage temperature	-40℃ to 70℃
Humidity	5% to 95%(non-condensing)
Drop Height	1.5 m
Transport vibration Test	10H@125RPM
Depth of field
4MIL	80-120mm (PCS90%,Code 39)
13MIL	80-350mm (PCS90%,EAN-13)
20MIL	60-450mm (PCS90%,Code 39)
40MIL	180-600mm (PCS90%,Code 39)
20MIL	30-250mm (PCS90%,QR Code)
Accessories List
Cable (non-removable)	USB Cable, used to connect the DF4100S to a host device.
Cable (non-removable)	RS232 Cable, used to connect the DF4100S to a host device, with USB supply cable.

Embedded Fixed Mount Scanner Wired Kiosk Cash Register QR Code Mini Size DF4100S

Package Size :188mm L * 95mm W * 40mm H
Size:(L)49.2mm * (W)37.5mm * (H)20.0mm
Weight:≈80g(without cable)
Embedded Fixed Mount Scanner Wired Kiosk Cash Register QR Code Mini Size DF4100S

FAQ:

Q1: How do you make sure the high quality barcode scanner?
DYscan: we are pofessional manufacturer and developer of barcode scanner, with rich field experience for 18 years.
Professional QC team and testing machine (Engine age test,wire bend machine,switch life test,shock resistance test).
All our barcode scanners pass CE,FCC,ROSH certifications etc.

Q2: How do you make quality control?
DYscan: we have wire bend test 1 million times, buttons are tested 1 million times, all the devices will be tested before send out.

Q3: How long is the warranty time of barcode scanner?
DYscan: 12 months

Q4: How to control the performance stable?
DYscan: We take the flow line production in the whole processing. Every product will be tested 4 times at least before delivery.

Q5: Can you provide OEM or ODM service for barcode scanner?
DYscan: We can do OEM, such as printing your own logo, color box, user manual. And we have our own technical team to support ODM service.
